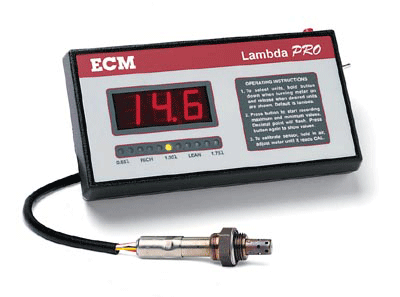

AFRecorder Lambda Pro

Lambda Pro is the simplist to use of all ECM’s air-fuel ratio (AFR) analyzers. Lambda Pro has many of the features of the Model 1200 but with less programmability. But don’t let this fool you, Lambda Pro has “big meter” features such as a linearized analog output, max/min AFR recording, and a stoichiometric SEGO. Lambda Pro is DC powered and comes with a carrying case.

Range: 8.0 to 25.5 AFR, 0.55 to 1.75 l
Accuracies: +/-1% at stoichiometric, +/-2% elsewhere
Response Time: Less than 150ms
Calculation Time: 1 ms
Fuel Types Supported: Lambda, Gasoline, Methanol, others available
Analog Output: 0 to 5 V, linearized
SEGO (Simulated Exhaust Gas Oxygen) Sensor Output: Yes. Stoichiometric.
Recording: Max., Min.
Statistics: Max., Min.
Power: 11 to 28 VDC
Size: 7.5" x 4" x 1.2" (W x H x D)
