G100-RAC
(Air-Fuel Ratio Gauge with
Recording/Playback and Analog Output)

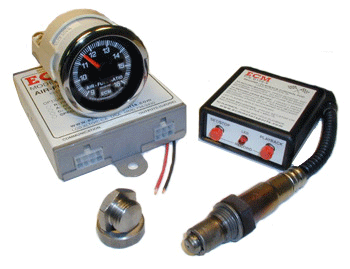

The G100-RAC combines four important features
into a single system: a wide-range AFR sensor, an easy-to-read gauge, data
recording with playback, and a linear 0 to 5 volt analog output. The
270-degree sweep gauge has a black or white backlit face, an illuminated
pointer, and is highly visible in both daylight and night conditions. The
analog output is suitable for input into a data acquisition system or engine
controller.
Data recording can be triggered either manually using the buttons on the
Record/Playback Control Pod, or automatically by the release of a wheel or
transmission brake using a 12 volt signal. Recordings of up to one minute
can be made and the data is retained even if the vehicle's battery is
disconnected. Holding down the Playback button plays back the AFR data on
the gauge and the analog output.
|
|
Range: 9.0 to 16.0 AFR (gasoline)
Accuracy: +/-2%
Analog Output: 0 to 5 V, linearized with AFR
Recording Duration: Up to 1 minute
Recording Activation: Button or 12V signal
Power: 11 to 28 VDC, key activated
Gauge: 2 1/16" diameter, black or white face, backlit
Module Size: 4" x 3.5" x 1" (W x H x D)
Harness: 11' (AFR), 15' (Power), 5' (Recording/Playback Pod), 8"
(Analog Output)
|
