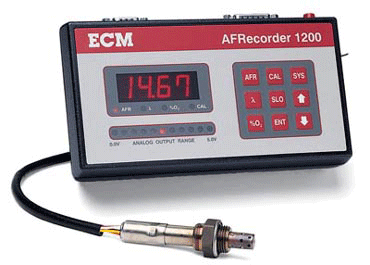

AFRecorder Model 1200

The AFRecorder Model 1200 is a highly integrated, full-featured, and extremely compact air-fuel ratio (AFR) analyzer.  Although it is only about the size of an unfolded wallet, the Model 1200 packs features such as a linearized programmable analog output, RS-232 control, PC software, a programmable SEGO output, and recording with built-in statistics.  The Model 1200 is DC powered and comes with an external AC/DC adapter and a carrying case.


Range: 6 to 150 AFR, 0.4 to 10 l, 0.1 to 2.5 f, 0 to 22% O2
Accuracy: +/-0.6% at stoichiometric, +/-0.9% elsewhere
Response Time: Less than 150ms
Calculation Time: 1 ms
Fuel Types Supported: Any fuel specified by H:C, O:C, and N:C ratios, and H2
Analog Output: 0 to 5 V, linearized, programmable
RS-232: Yes. Software included.
SEGO (Simulated Exhaust Gas Oxygen) Sensor Output: Yes. Programmable.
Recording: Yes
Statistics: Average, Maximum, Minimum, Standard Deviation
Alarms: No
Power: 11 to 28 VDC, 100 to 250 VAC to DC converter supplied
Size: 7.5" x 4" x 1.2" (W x H x D)
